Place of Origin:
HENGSHUI
Brand Name:
Hengyuan
Certification:
ISO,CIQ,CO,FORM E
Model Number:
HY0222015
Contact Us

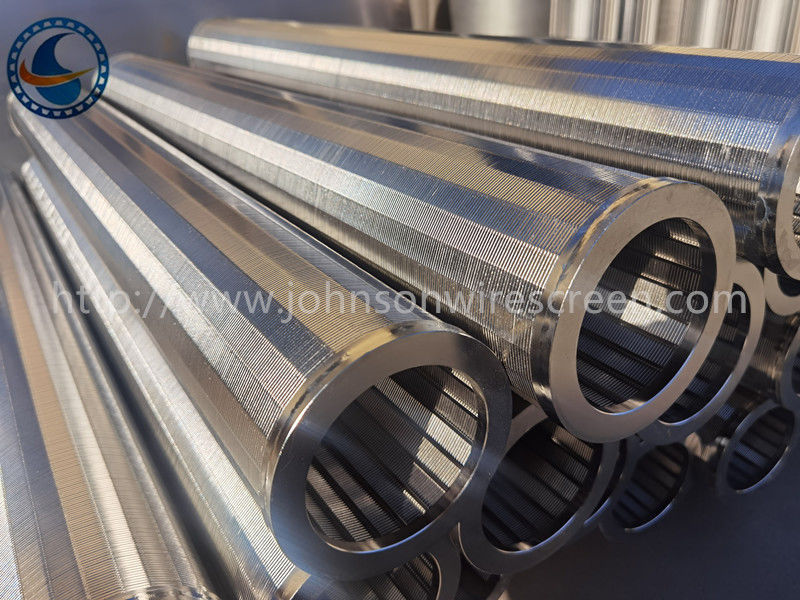

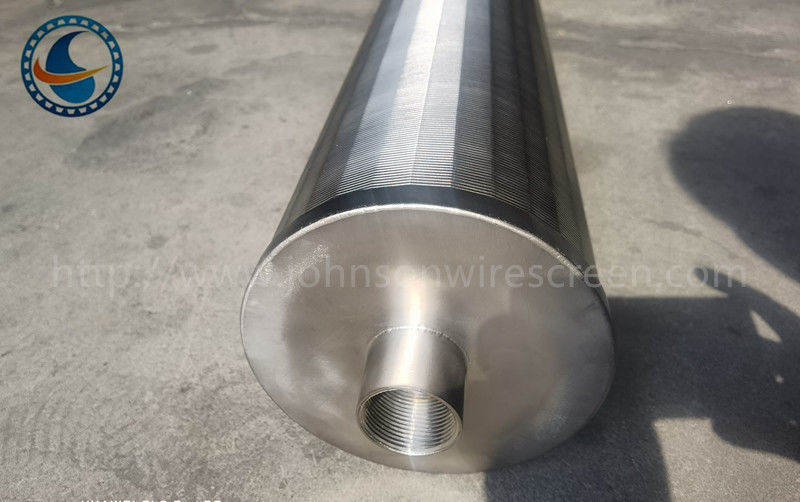

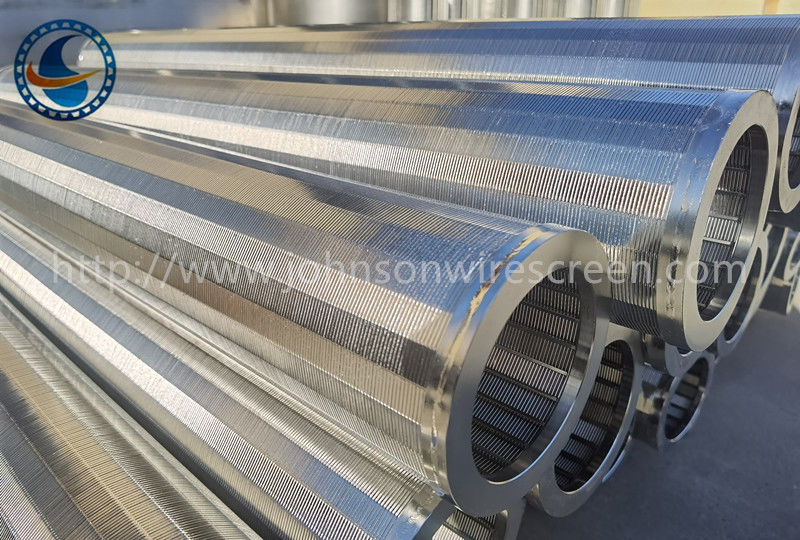

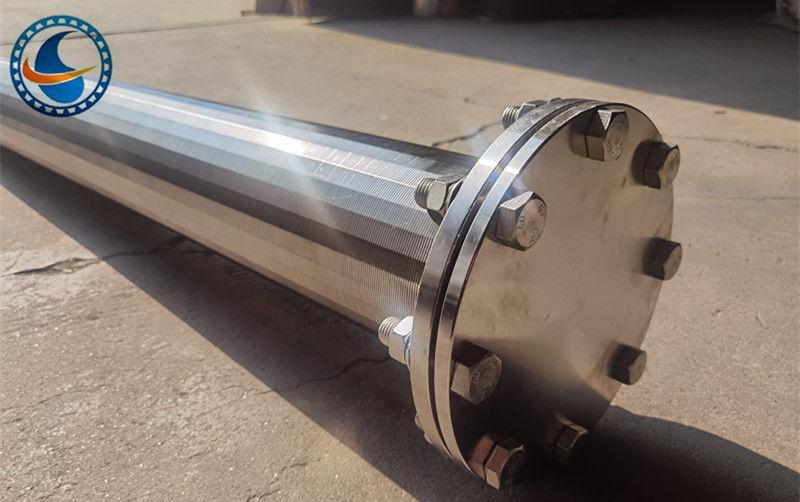

Johnson Wedge Wire Screen Filter is one of the most reliable and cost-effective solutions for screening, filtering, and sieving applications. With wire diameters ranging from 0.5mm to 2.5mm, these wire-wrapped screens and vee-wire screens provide superior strength and flexibility. The weld strength of the screens is up to 95%, and the tolerance of each wire is ±0.05mm. The length and width of the screens can reach up to 6 meters and 3 meters respectively, making them suitable for a wide range of industrial and commercial applications.
| Property | Description |
|---|---|
| Open Area | Up To 60% |
| Length | Up To 6m |
| Wire Diameter | 0.5mm-2.5mm |
| Width | Up To 3m |
| Material | Stainless Steel |
| Tolerance | ±0.05mm |
| Surface Treatment | Polishing, Galvanizing |
| Weld Strength | Up To 95% |
| Package | Wooden Cases |
| Slot Size | 0.1mm-10mm |
| Product Name | Johnson Wedge Wire Screens |
Johnson Wedge Wire Screen Filter, brand name Hengyuan, model number HY-001, is a kind of water well screen, slot wire screen, and wire-wound screen manufactured in Hengshui, China. It has gained ISO, CIQ, CO and FORM E certifications. The minimum order quantity is 10 pieces, the price is negotiable and the package is wooden cases. The slot size is ranging from 0.1mm to 10mm, with tolerance of ±0.05mm. The length of the product can be up to 6m, and the profile is wedge wire. The delivery time is from 3 to 30 days, payment terms is TT, and factory supply ability.
Johnson Wedge Wire Screen Filter with Brand Name Hengyuan, Place of Origin HENGSHUI, Certification ISO, CIQ, CO, FORM E are designed to meet the highest quality standards. We offer custom Slot Wire Screens, Wire-Wrapped Screens, Water Well Screens, Wedge Wire Screens with tolerance of ±0.05mm, surface treatment of polishing and galvanizing, material of stainless steel, maximum length of 6m, and minimum order quantity of 10 pieces. We guarantee safe packaging with plastic film, bubble film, and wooden box. The price and delivery time will be discussed according to your requirements. Payment terms are TT and our factory has the ability to supply.
