Name: V Shaped Slots Wedge Wire Screen Tube For Water Infiltration
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY0221004
Price: 155.00 USD
Availability: InStock

Home > PRODUCTS > Wedge Wire Mesh >

V Shaped Slots Wedge Wire Screen Tube For Water Infiltration

Water Infiltration Wedge Wire Screen Tube

Wedge Wire Screen Tube

V Slot Wedge Wire Screen Tube

Place of Origin:

Hebei,China

Brand Name:

HengYuan

Certification:

ISO, CIQ, CQ

Model Number:

HY0221004

Request A Quote

Product Details

Features:

Non-clogging

Name:

V-Shaped Slots Wedge Wire Screen Tube

Material:

Stainless Steel 304

Slot Material:

Stainless Steel 201, 304, 304L, 316L And Others

Product Name:

Non Clogging 304 Stainless Steel Wedge Wire Screen For Rotating Fine Grid Filters

Better Sand Filtration:

Specialized Manufacturing Process Allows For A Wide Range Of Slot Openings Down To 0.15mm For Better Sand Control

Length:

Upto 6000mm

Continuous Slots:

Special Design Gives Continuous Slot Opening Across The Periphery And Length Of Screen

Technique:

Point Welding

Wire:

Vee-shaped Wire

High Filtration Precision Wedge Wire Screen Mesh for Wastewater Treatment

Get Best Price

Video

V Shaped Slots Wedge Wire Screen Tube For Water Infiltration

Get Best Price

Video

Stainless Steel Vee Profile Wedge Wire Mesh Pipe Well Screen For Water

Get Best Price

Video

SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

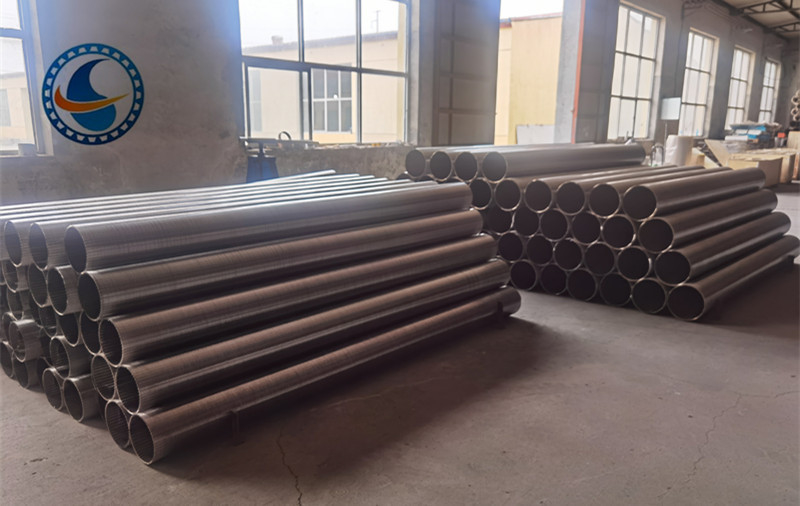

V Shaped Slots Wedge Wire Screen Tube For Water Infiltration

Attribute	Value
Name	V-Shaped Slots Wedge Wire Screen Tube
Material	Stainless Steel 304
Features	Non-clogging
Slot Material	Stainless steel 201, 304, 304L, 316L and others
Product Name	Non Clogging 304 Stainless Steel Wedge Wire Screen For Rotating Fine Grid Filters
Better Sand Filtration	Specialized manufacturing process allows for a wide range of slot openings down to 0.15mm for better sand control
Length	up to 6000mm
Continuous Slots	Special design gives continuous slot opening across the periphery and length of screen
Technique	Point Welding
Wire	Vee-shaped wire

Product Description

The V-Shaped Slots Wedge Wire Screen Tube is a high-performance filtration solution designed for industrial applications requiring superior sand control. Manufactured from durable Stainless Steel 304, this wedge wire screen offers exceptional corrosion resistance and longevity.

Key Features

Non-clogging design ensures continuous filtration operations
Vee-shaped wire construction with continuous slot openings
Precision slot openings down to 0.15mm for superior sand control
Sturdy support rod (2×3mm Vee Wire) enhances structural integrity
Point welding technique for durable construction
Available in lengths up to 6000mm

Technical Specifications

Application	Filtration
Wire	1.5×2mm Vee Wire
Slot Size	1.0mm
Standard Length	1000mm
Diameter	498mm
V-Shaped Slots	Openings shaped like a 'V' that open toward the inside of the well

Industrial Applications

This versatile wedge wire screen tube is widely used in:

Water treatment plants and wastewater facilities
Oil and gas processing
Food processing operations
Mining and mineral processing
Dewatering and solid-liquid separation systems

Manufactured with ISO-certified quality standards, our wedge wire screen tubes are packaged in wooden boxes for safe transportation and easy handling. Custom lengths and specifications are available to meet specific industrial requirements.
