Name: SS304L 8-5/8" Slot 40 Water Well Screen For Sand Control In Water Wells
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: 8-5/8"
Price: 200.00 USD
Availability: InStock

Home > PRODUCTS > Water Well Screen >

SS304L 8-5/8" Slot 40 Water Well Screen For Sand Control In Water Wells

Sand Control Water Well Screen

SS304L Water Well Screen

8-5/8" Water Well Screen

Place of Origin:

Hengshui,Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

8-5/8"

Request A Quote

Product Details

Name:

Water Well Screen

Material:

Stainless Steel 304L

Diameter:

219mm

Length:

5800mm

Slot Size:

1.0mm

Wrap Wire:

3.0×4.6mm

Support Rod:

ø4.0mm

NO. Of Rod:

48NOS

End Connection:

API STC Threaded

Weight:

110KG/piece

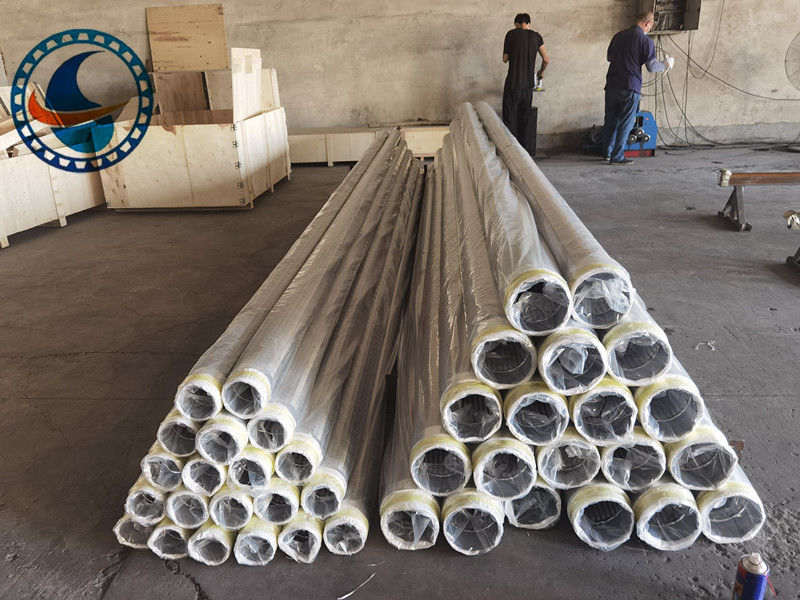

Package:

Plastic Film

Use:

In Water Wells For Sand Control

SS304L 12-3/4" Slot 40 Water Well Screen For Irrigation

Get Best Price

Video

Stainless Steel 304L Rod Based Continuous Slot Wedge Wire Screen

Get Best Price

Video

SS304 Vee Wire Water Well Screen Non Clogging Long Lasting Performance

Get Best Price

Video

Low Carbon Galvanized Water Well Screen Excellent Pressure Resistant Suppliers

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

8-5/8" Slot 40 Water Well Screen For Sand Control In Water Wells

Commonly referred to as continuous slot or wire wrap screen, continuous slot water well screen was originally developed to overcome problems associated with cable tool wells drilled in fine grained, uniform sands in the North Central United States.

These wells were typically completed in relatively shallow, thin aquifers that were very prolific in terms of water production.

Continuous wire wrap screen are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize frictional head loss.

Water Well Screen Regular Specifications:

Name:Continuous Slot Rod Based Water Well Screen,Oil Well Sand Screen,Water Well Screen, Wedge wire screen,Screen tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:23.5mm,2.23.5mm,34.6mm,35mm,36mm,36.5mm,3.26mm,47mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.
Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine, Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.
Sizes (inch)	OD (mm)	Slot (mm)	Length (m)	Tenslie Strength	Collapse Strength	Wrap wire Vee-shaped wire(mm)	Support rod Round wire(mm)
3-1/2	88.9	1.0	2.9	＞22	10.2	2.03.5(Widthheight)	ø3.8MM×22
4-1/2	114.3	1.0	2.9	＞28	11.5	2.03.5(Widthheight)	ø3.8MM×22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.03.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.23.5(Widthheight)	ø3.8MM×32
6-5/8	168.3	0.63	5.8	＞83	45	3.06.0(Widthheight)	ø6.0MM×32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.23.5(Widthheight)	ø3.8MM×48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.04.6(Widthheight)	ø4.0MM×48
8-5/8	219.1	1.0	5.8	＞60	46	3.06.0(Widthheight)	ø5.0MM×48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.23.5(Widthheight)	ø4.0MM×55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.04.6(Widthheight)	ø4.8MM×55
10-3/4	273.1	1.0	5.8	＞100	48	3.26.0(Widthheight)	ø5.0MM×55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.05.0(Widthheight)	ø4.0MM×56
14	355.6	1.0	2.9	＞80	37.8	3.05.5(Widthheight)	ø4.0MM×59
16	426	1.0	2.9	＞80	37.5	3.05.5(Widthheight)	ø4.0MM×64

Special specification can be made according to your need !

Water Well Screen Use:

Water Well,

Food &Beverage Screens,

Pharmaceutical & Biological industries,

Refining & Petrochemical,

Water Treatment & Liquid / Solids Separation,

Mineral & Aggregate Processing,

Pulp & Paper Screens.
