Name: SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070703
Price: 110.00 USD
Availability: InStock

Home > PRODUCTS > Johnson Wedge Wire Screens >

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

SS304 Wedge Wire Screen Pipe

Wedge Wire Screen Pipe

stainless steel wedge wire screen

Place of Origin:

Hengshui City,Hebe Provincei,China

Brand Name:

HengYuan

Certification:

ISO,CO,FORM E,CIQ, etc

Model Number:

HY070703

Request A Quote

Product Details

Features:

Non-clogging

Name:

Rod Based Continuous Slot Wedge Wire Screen Pipe

Material:

Stainless Steel 304

Diameter:

25mm

Length:

200mm

Slot:

0.25mm

Wire:

1.5*2mm Vee Wire

Support Rod:

2*3mm Vee Wire

Ends:

Male Threaded

Technique:

Point Welding

Application:

Filteration

Package:

Wooden Box

Business Type:

Manufacturer

Machinery Test:

Provided

Titanium 0.18MM Slot Wedge Wire Screen For Mechanical Filtration

Get Best Price

Video

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

Get Best Price

Video

Stainless Steel 304 Johnson Wedge Wire Screen Suppliers

Get Best Price

Video

Pure Round Wedge Wire Screen Filter , Wrap Wire Screen Outside Scraper Type

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

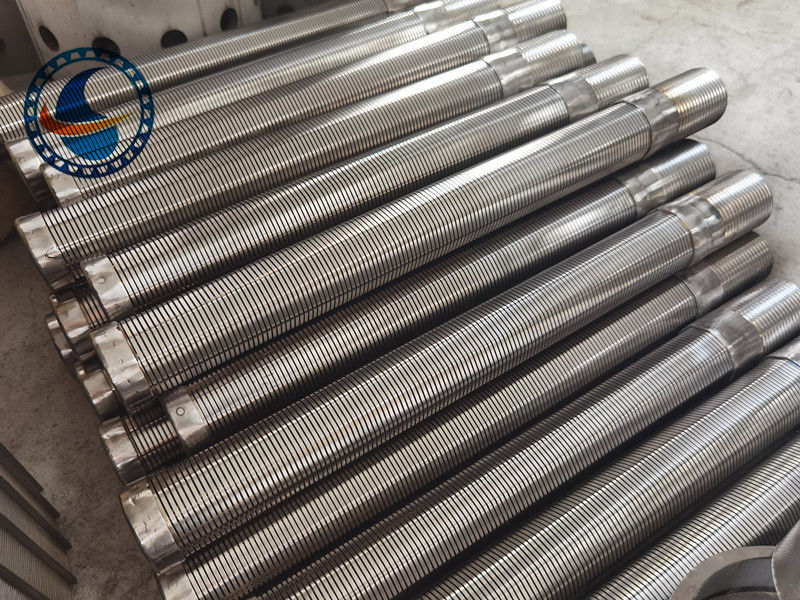

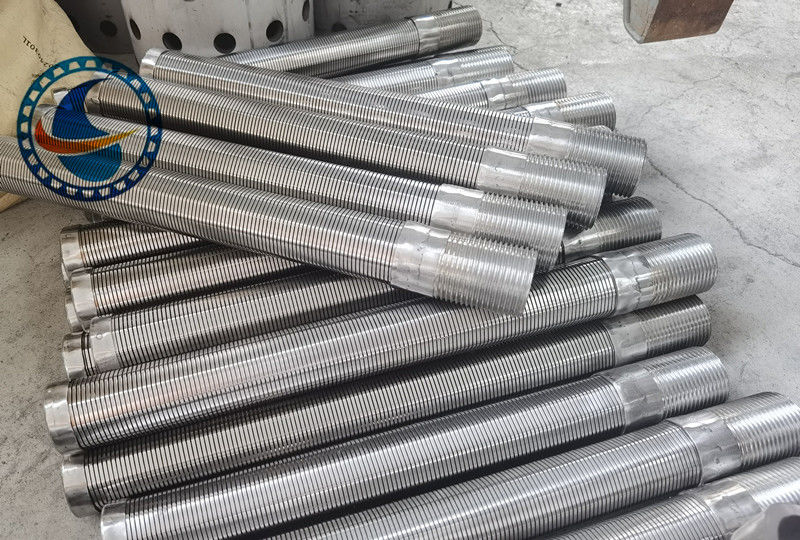

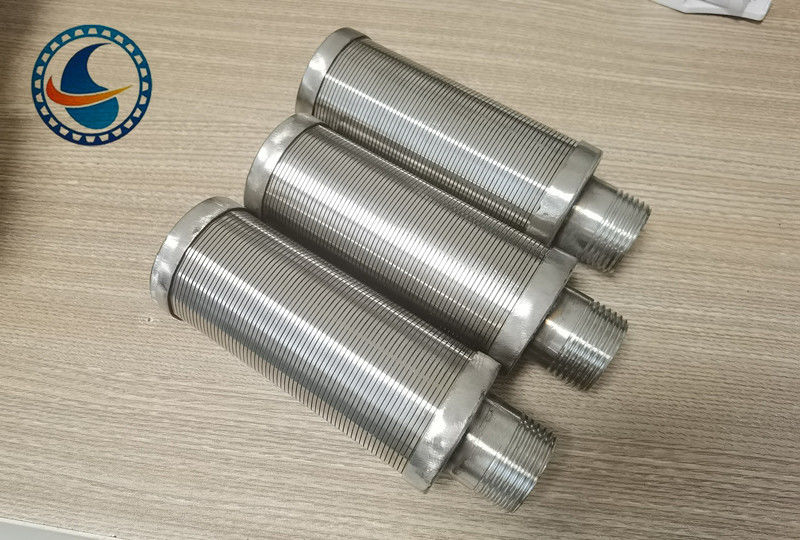

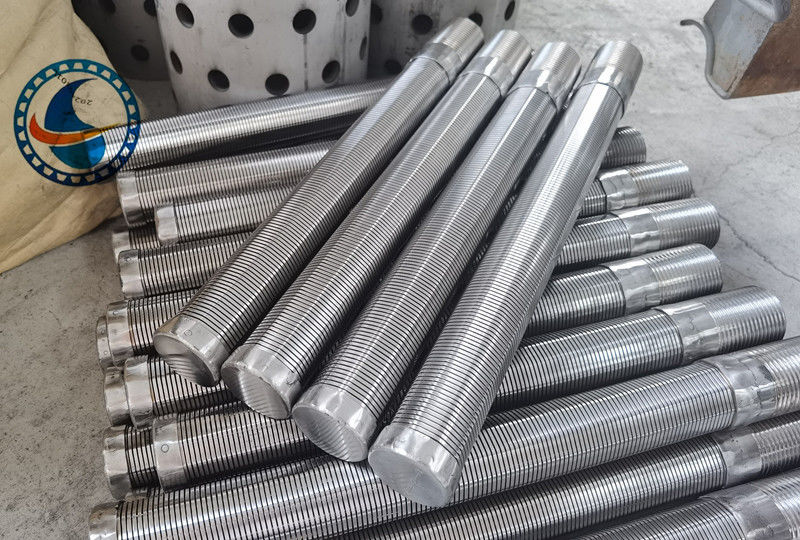

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

Attribute	Value
Name	Rod Based Continuous Slot Wedge Wire Screen Pipe
Material	Stainless steel 304
Diameter	25mm
Length	200mm
Slot	0.25mm
Wire	1.5*2mm Vee wire
Support rod	2*3mm Vee wire
Ends	Male threaded
Technique	Point welding
Features	Non-clogging
Application	Filteration
Package	Wooden box
Business type	Manufacturer
Machinery Test	Provided

The SS rod based continuous slot wedge wire screen pipe liners which require external supports and also self-supporting balanced baskets for the centrifuge manufacturers.

These rod based continuous slot wedge wire screen pipes are more complex than the other types of screens requiring extra strength to withstand the stresses of centrifuge dryers.

These rod based continuous slot wedge wire screen pipes are typically used in mineral processing for coal, potash, salt, sand, pulp, paper and a variety of chemicals. They are also used for refuse removal from oil and gas drillers.

Benefits of SS Rod Based Continuous Slot Wedge Wire Screen Pipe

High shive and stickies removal efficiency
Maximized flow capacity
Durable, extended operating life
Application flexibility
Dimensional accuracy

Material: Stainless steel 304, 316, 316L

Diameter: 26mm-1300mm

Shape: Cylindrical

Slot: 0.02-100mm

Thickness: 4mm

Feature: Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells

Application:

Architecture & Construction
Food & Beverage Screens
OEM Screen Components
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Coal & Mine
Chemical industry
Pharmacy
Food and beverage
Metallurgy
Coal mining
Environmental protection

Rod Based Continuous Slot Wedge Wire Screen Pipe Characteristics:

Wedge Wire Screen Pipe has high mechanical strength, can bear large pressure drop.
Wedge Wire Screen Pipe has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
The wedge type slot can improve backflushing and regeneration performance.
It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
