Name: Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070801
Price: 155.00 USD
Availability: InStock

Home > PRODUCTS > Wedge Wire Mesh >

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304

Stainless Steel Wedge Wire Screen

Reverse Profile wedge wire filter

Stainless 304 wedge wire filter

Place of Origin:

Hengshui City,Hebei Provincei,China

Brand Name:

HengYuan

Certification:

ISO,CO,FORM E,CIQ, etc

Model Number:

HY070801

Request A Quote

Product Details

Features:

Non-clogging

Name:

Reverse Wedge Wire Filter

Material:

Stainless Steel 304

Diameter:

225mm

Length:

125mm

Slot:

0.095mm

Wire:

1*2mm Vee Wire

Support Rod:

2*3mm Vee Wire

Ends:

Nothing

Technique:

Point Welding

Application:

Filteration

Package:

Wooden Box

Business Type:

Manufacturer

Filter Type:

From Inside To Outside

SS304 Vee Wire Wedge Wire Screen Non Clogging Long Lasting Performance

Get Best Price

Video

0.5mm Slot Johnson Type Wedge Wire Screen Filter Stainless Steel

Get Best Price

Video

Non Clogging SS304 Wedge Wire Screen Filter For Rotating Fine Grid Filters

Get Best Price

Video

Full Welded Wedge Wire Screen Mesh For Effective Liquid Filtration

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

Reverse Profile Wire Wedge Wire Screen Information:

Material : Stainless steel wire.Such as: SS304, SS201, SS316L etc.

Diameter : 100-1300 mm ,can make as customers request.

Slot: 0.02-10mm

Length :10-4000mm

End connection:male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Filter type:From outside to inside. also can make other type:From inside to outside.

Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 1.5*2.5mm, 2*3mm, 2*3.5mm, 2*4mm, 3*4.6mm, 3*5mm etc.

Support rod: 2*3mm, 3*4.6mm, 3*5mm etc.

Reverse Profile Wire Wedge Wire Screen Filter type:

Flow inside to outside also known as filtration in to out (FITO) happens when the support profile is horizontal to the surface profile of the wedge wire filter.

Flow inside to outside is ideal if you want to maintain the pressure of the fluid during the filtration.

However, there will be frequent cake formation as a result of the deposit of contaminants at the sides of the wedge wire filter.

This is due to the small inner diameter which does not generate enough pressure to force the contaminants.

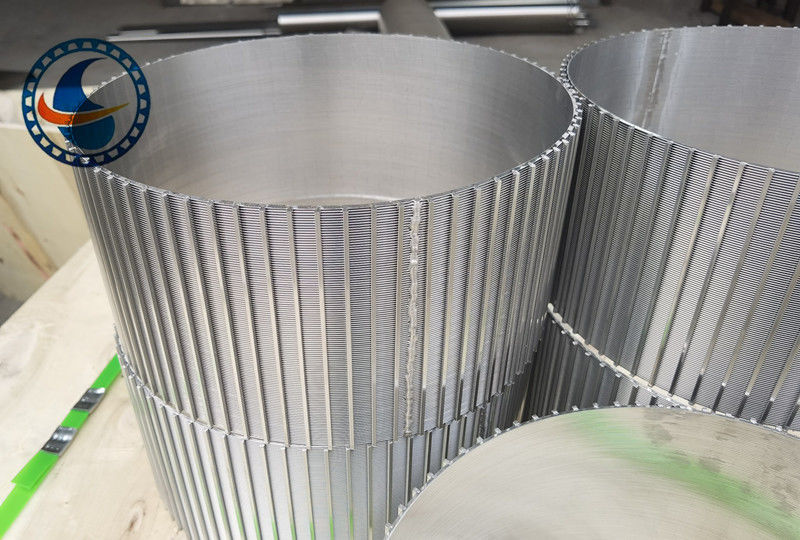

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304 0

Reverse Profile Wire Wedge Wire Screen Normal wire and support size:

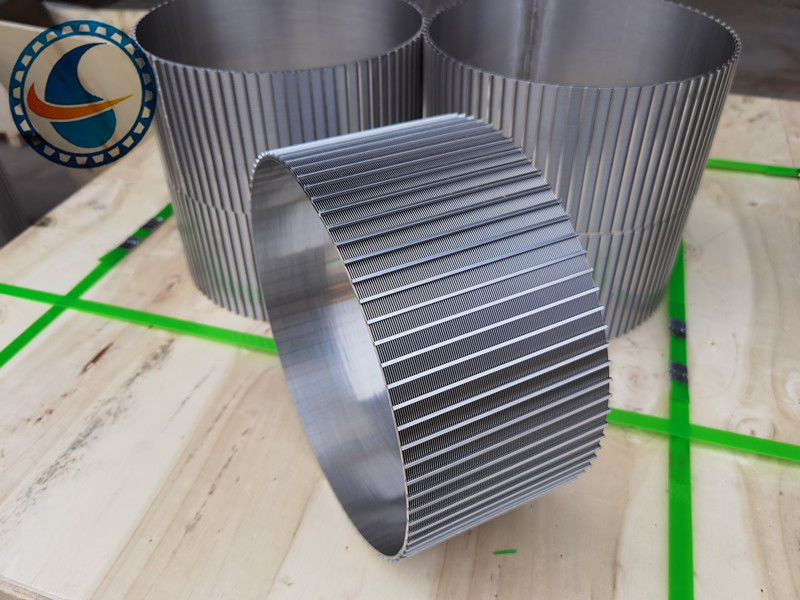

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304 1

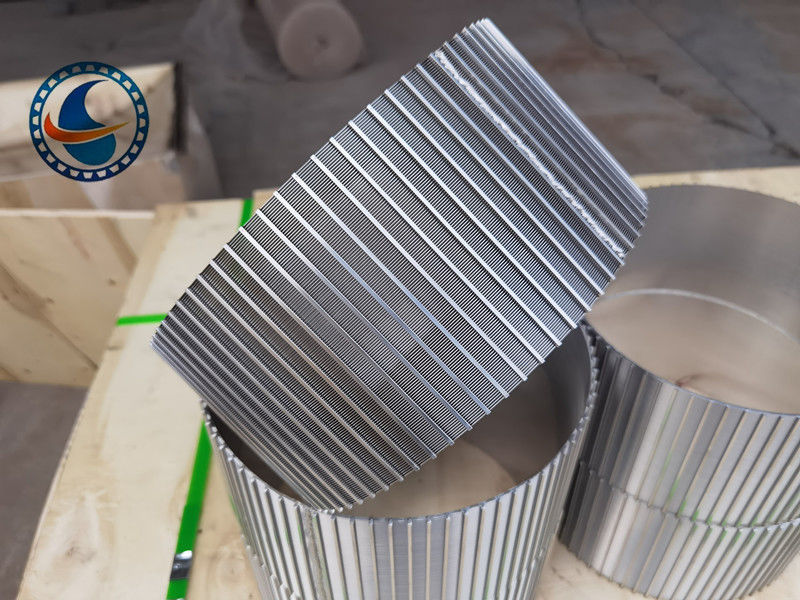

Reverse Profile Wire Wedge Wire Screen Filter Of Stainless Steel 304 2
