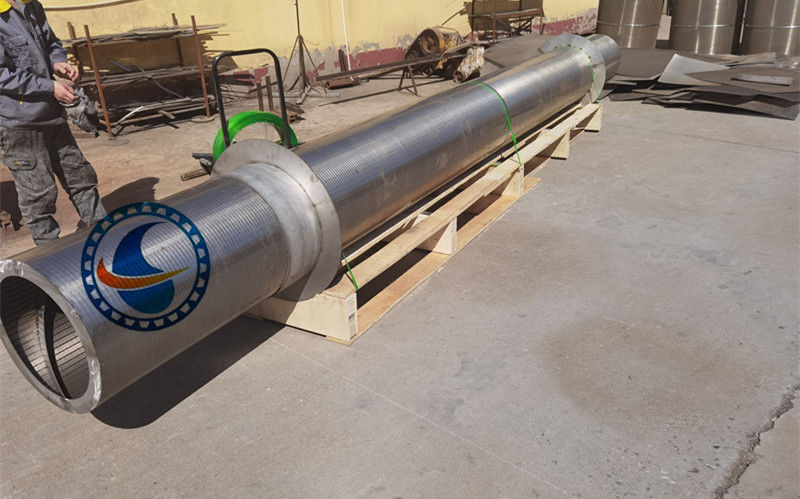

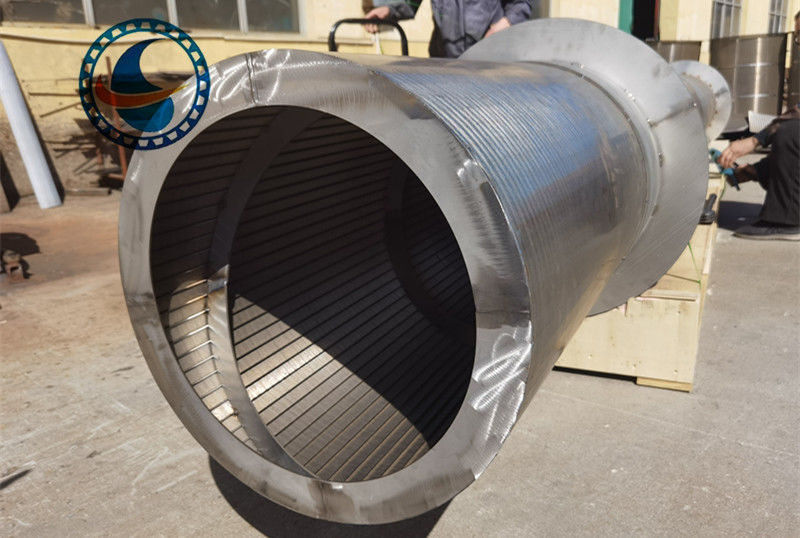

Wedge Wire Rotary Screen Drum
Hengyuan Factory mainly products are:stainless steel Vee-sharped wire / wrap wire , Johnson screen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen , screen nozzle / water and gas strainer , sieve plate , slot mesh , ARC screen etc.
We are the manufacturer of Roary Drum Screen, Wedge Wire Cylinder Screen for more than 15 years.
The size we uaual make as below:
Material: Low Carbon,Low Carbon Galvanized,Stainless Steel etc.
Diameter:29-1500mm
Slot size (mm):0.1, 0.2, 0.3, 0.5, 0.63, 0.75, 1.0, 1.5mm in usual, can make other slot as your request
Length: upto 6 meters
End connection:Welded Rings; Threaded couplings; Closed up; Flange and other type as your request.
The Wedge Wire Screen is also called Screen filter, Wound Screen, Water well screen.

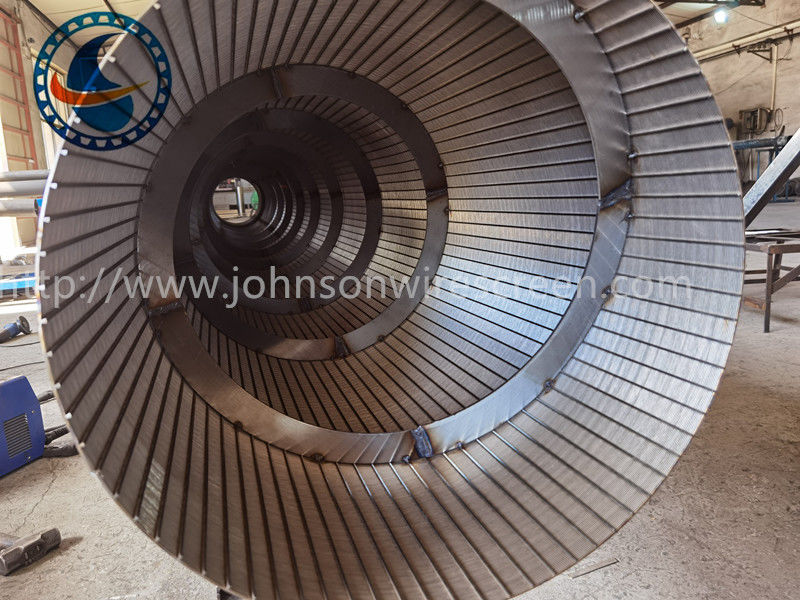

It is made of Vee-shaped wire (surface wire) and support wire.

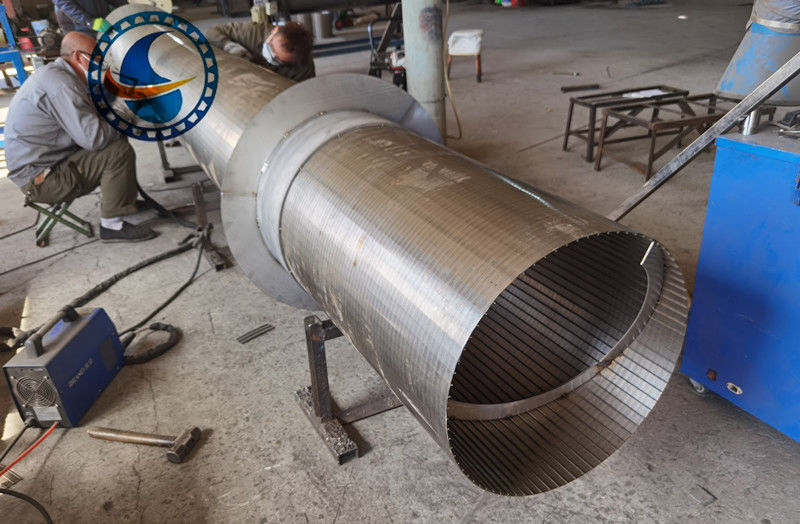

The surface wire is connected with the support rod by electric welding.
The strict continuous integrity makes the full-welded wire. The screen has the minimum amount of high-pressure resistance.
The smooth surface of the wire-wound screen is a filtering surface, and the slit is strip-shaped, belonging to the surface filtration form. Filter elements for various types of automatic filters (such as automatic backwashing, blade self-cleaning, scraper self-cleaning, and suction-type self-cleaning filters) are widely used for fluid filtration in various industries.
Use of Wedge Wire Rotary Screen Drum:
1. Dewatering machine filter
2. Filter, such as diatomaceous earth filter
3. Centrifugal separator parts
4. Vibrating screen machine
5. Solid-liquid separation device coarse filter
6. River water and seawater water treatment equipment.
7. Various catalysts such as activated carbon and plasma exchange devices.
Wedge Wire Rotary Screen Drum Size:
|
Outside Diameter
(mm)
|
Length
(mm)
|
Slot
(mm)
|
Styles of connection
(mm)
|
|
29, 38, 57,63,
76, 89, 108,168, 320, 600, 900,1000 etc.
|
1000,2000,3000 etc. |
0.025, 0.1, 0.25, 0.5, 1.0 |
Welded rings, male/female threaded
Or nothing (Open ends)
|
| Noted |
Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 29mm- ￠ 1500mm, the length from the 100mm-4000mm series screen pipe
|
Pls feel free to contact me if you have any questions.
Hope we can work together soon.
