Name: SS304 Vee Shaped Profile Wire Wedge Wire Screen Filter Pipe
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070803
Price: 110.00 USD
Availability: InStock

Home > PRODUCTS > Johnson Wedge Wire Screens >

SS304 Vee Shaped Profile Wire Wedge Wire Screen Filter Pipe

SS304 Vee-shaped Profile Wire

Wedge Wire Screen Filter Pipe

SS304 wedge wire screen filter

Place of Origin:

Hengshui City,Hebe Provincei,China

Brand Name:

HengYuan

Certification:

ISO,CO,FORM E,CIQ, etc

Model Number:

HY070803

Request A Quote

Product Details

Features:

Non-clogging

Name:

Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe

Material:

Stainless Steel 304

Diameter:

140mm

Length:

1000mm

Slot:

0.2mm

Wire:

1.5*2mm Vee Wire

Support Rod:

2*3mm Vee Wire

Ends:

Male Threaded

Technique:

Point Welding

Application:

Filteration

Package:

Wooden Box

Business Type:

Manufacturer

Filter Type:

From Outside To Inside

Continuous Slot Wedge Wire Screen Cylinders For Oil Well

Get Best Price

Video

OD 2-3/8" Slot 100μm SS304 Johnson Type Wedge Wire Screen Filter

Get Best Price

Video

Stainless Steel 316L 0.5mm Slot Wedge Wire Oil Screen Pipe 2-7/8" OD

Get Best Price

Video

Full Welded Wedge Wire Wound Screen Of Stainless Steel

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

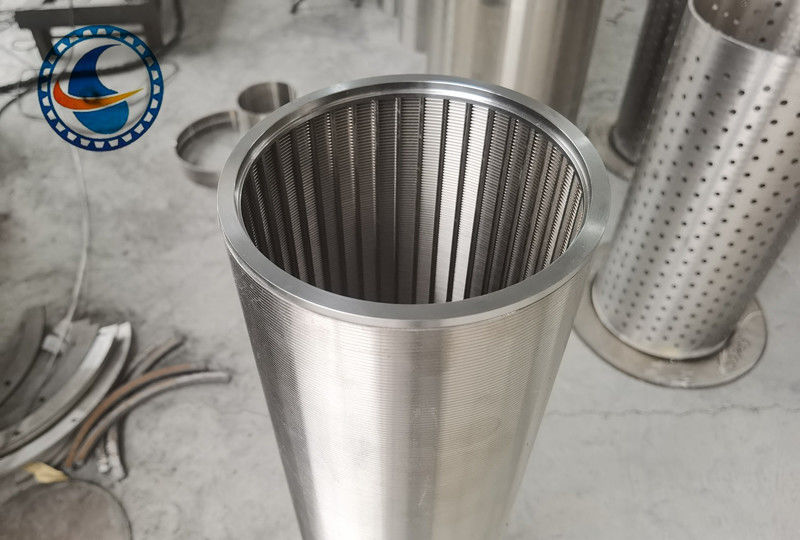

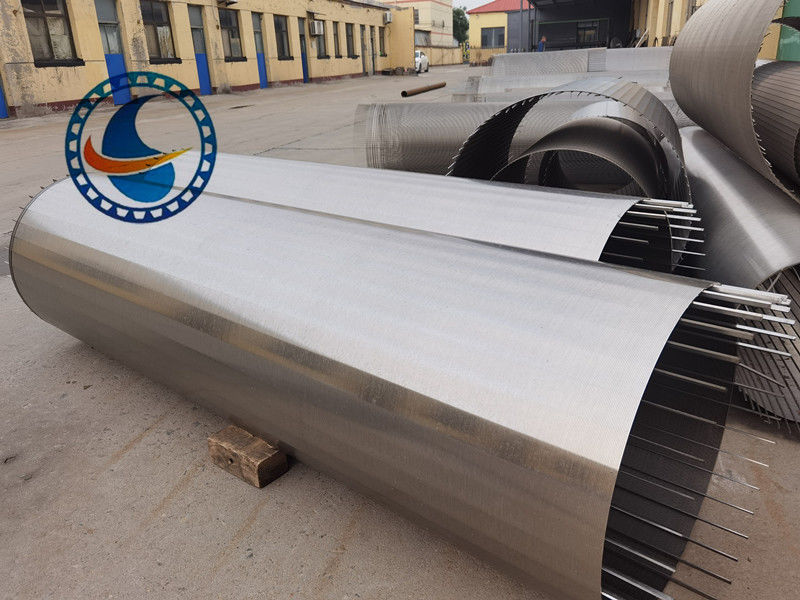

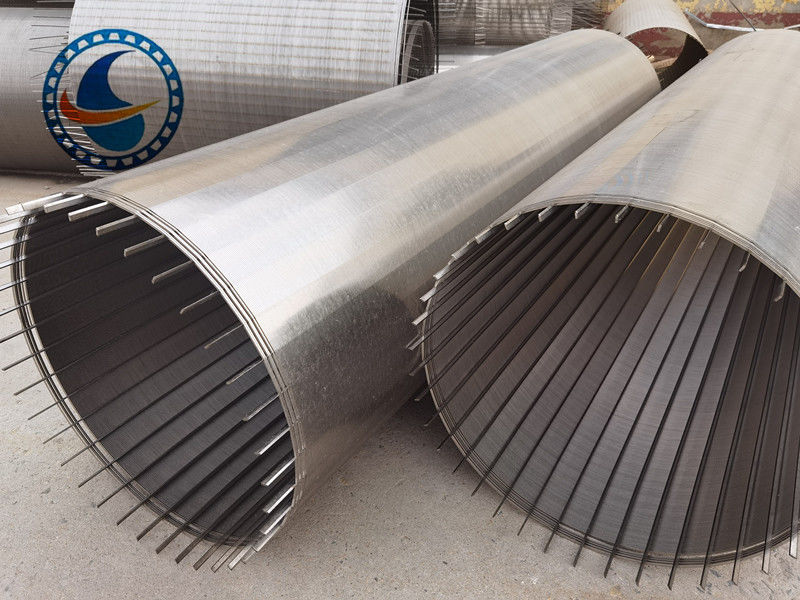

SS304 Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe

The surface profile of the wedge wire screen filter pipe comprises of a wire also known as V-shaped wire.

Remember, there are four types of surface profile available for a wedge wire filter,that is, flat wire, triangle wire, round wire, and trapezoid wire.

The primary material of surface profile in most wedge wire filters is steel due to its characteristics when it comes to filtration of fluids.

Depending on the directional flow of your fluid, the surface profile can either be horizontal or vertical.

The width size available for the surface profile ranges from 1.0mm to 4.0mm while the height varies from 2.0mm to 6.5mm.

Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe Sizes:

Material : stainless steel wire.Such as: SS304, SS201, SS316L etc; Hastelloy C276; 904L; Duplex 2205,2507

Diameter : 26-1300 mm ,can make as customers request.

Slot: 0.02-100mm

Length :10-4000mm

End connection : male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Material	Stainless steel 304, 316L,Hastelloy C276; 904L; Duplex 2205,2507 etc.
Diameter	25mm-1300mm
Shape	Cylindrical
Slot	0.02mm-10mm
Thickness	4mm-12mm
Feature	Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells
Application	--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio

Vee-shaped Profile Wire Wedge Wire Screen Filter Pipe Features:

1. It has high mechanical strength, can bear large pressure drops.
2. The wedge-type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, used in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

SS304 Vee Shaped Profile Wire Wedge Wire Screen Filter Pipe 0
