Name: Stainless Steel Wedge Wire Screen Panels for Food Filtration
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY0727003
Price: 210.00 USD
Availability: InStock

Home > PRODUCTS > Wedge Wire Screen Panels >

Stainless Steel Wedge Wire Screen Panels for Food Filtration

stainless steel wedge wire screen

food filtration wire screen panels

wedge wire screen for filtration

Place of Origin:

Hebei,China

Brand Name:

Heng Yuan

Certification:

ISO9000

Model Number:

HY0727003

Request A Quote

Product Details

Name:

Wedge Wire Screen Panels

Material:

Stainless Steel 316L, 304, 321, 2205, 2507

Slot Size:

0.025mm-100MM

Video Outgoing-inspection::

Provide

FIlter Rating:

75%

Hole Shape:

Slot

Business Type:

Manufacturer

Technique:

Wedge Wire,wire Wound

Oem:

YES

Feature:

Easy Leakage,non-clogging,wear Resistance,corrosion Resistance

SS316L Wedge Wire Screen Panels for Petroleum Filtration

Get Best Price

Video

Ss 316l Wedge Wire Screen Panels Welding Slot Size 3.0mm Dutch Weave

Get Best Price

Video

Filter Johnson 304 Wedge Wire Screen Panels Stainless Steel Sieve Bend Screen

Get Best Price

Video

Stainless Steel 2205 Wedge Wire Panels Ss Filter Profile Johnson Screen

Get Best Price

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contact Now

Product Description

SS304 Wedge Wire Screen Panels For Food Filtration

Product Specifications

Attribute	Value
Name	Wedge Wire Screen Panels
Material	Stainless steel 316L, 304, 321, 2205, 2507
Slot size	0.025mm-100MM
Video outgoing-inspection	Provide
Filter rating	75%
Hole shape	Slot
Business type	Manufacturer
Technique	Wedge wire, wire wound
OEM	YES
Feature	Easy leakage, non-clogging, wear resistance, corrosion resistance

Product Description

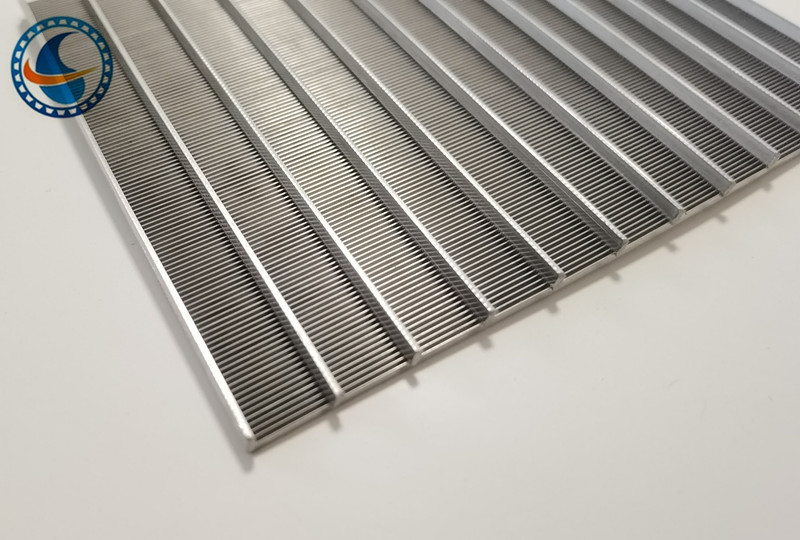

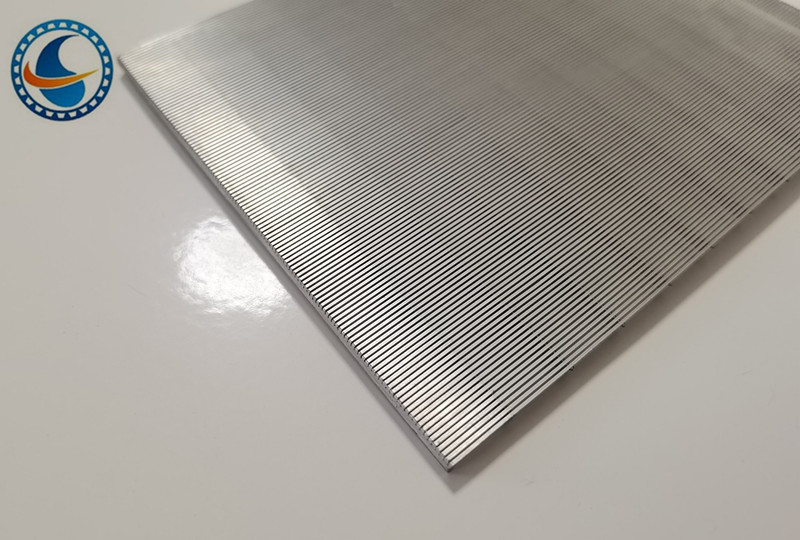

Wedge wire screen panels, also known as wedge wire screen plates, wire wrapped screens, Johnson screen plates, or Johnson screen panels, are constructed with V-shaped profile wires and longitudinal support rods. The unique V-shaped design prevents blockage while ensuring unimpeded water flow.

The consecutive slots provide greater open area, reducing water entry speed. Each intersecting point is fusion welded for sturdy construction and excellent mechanical properties. This design prevents sand from entering the screen under high pressure while allowing slot adjustments based on specific conditions.

Applications

Widely used in various kinds of medium filtering
Water treatment equipment for environmental protection, seawater desalination, and softening treatment
Petroleum industry applications including terminal filters, chemical acid/alkali liquid filters, and ethanol filtration
Organic solution recycling filtration

Technical Specifications

Material: Stainless steel 302, 304, 316, 304L, 316L etc.

Slot: 0.025mm - 100mm

Discrepancy: + / - 0.05mm

Dimension: Width up to 3000 mm, length up to 4430mm

Sizes of the Wire and Rod

Wire Shape	V	V	V	V	V	V
Width(mm)	1.0	1.2	1.5	2.0	2.2	3.0
Height(mm)	2.0	2.0	2.0	3.5	4.5	4.6
Rod Shape	V	V	V	V	V	O
Width(mm)	2.0	2.2	3.0	3.0	3.2	Diameter
Height(mm)	3.0	4.5	4.6	5.0	6.0	3.0~3.8

If you are interested in our product, please contact us for more information.
